Drone-Based Pedestrian Tracking for City Planning

This industry project was conducted as part of my work at HSLU in collaboration with a city authority. The project was carried out by a small team. I was strongly involved across the full technical pipeline, from data acquisition to large-scale processing and analysis. Fine-tuning of the YOLO detector was performed by Teresa Windlin, who later continued the work as part of her bachelor thesis. The project received an award for best bachelor thesis at an industry event.

Problem Definition

A public square was undergoing a redesign process. To support data-driven planning decisions, the city required objective measurements of how the space was used. The goal was to compare pedestrian behavior before and after temporary interventions such as potted trees and benches that outlined the future design.

To achieve this, the square was recorded on multiple days in two phases: Wave 1 captured the current state, while Wave 2 captured usage after the temporary measures were installed. The challenge was to extract reliable movement patterns from aerial recordings while respecting strict privacy constraints.

Solution Concept

The solution is based on drone-based video analysis combined with computer vision pipelines. Each recording session consisted of approximately two hours of 4K video captured from a fixed aerial position.

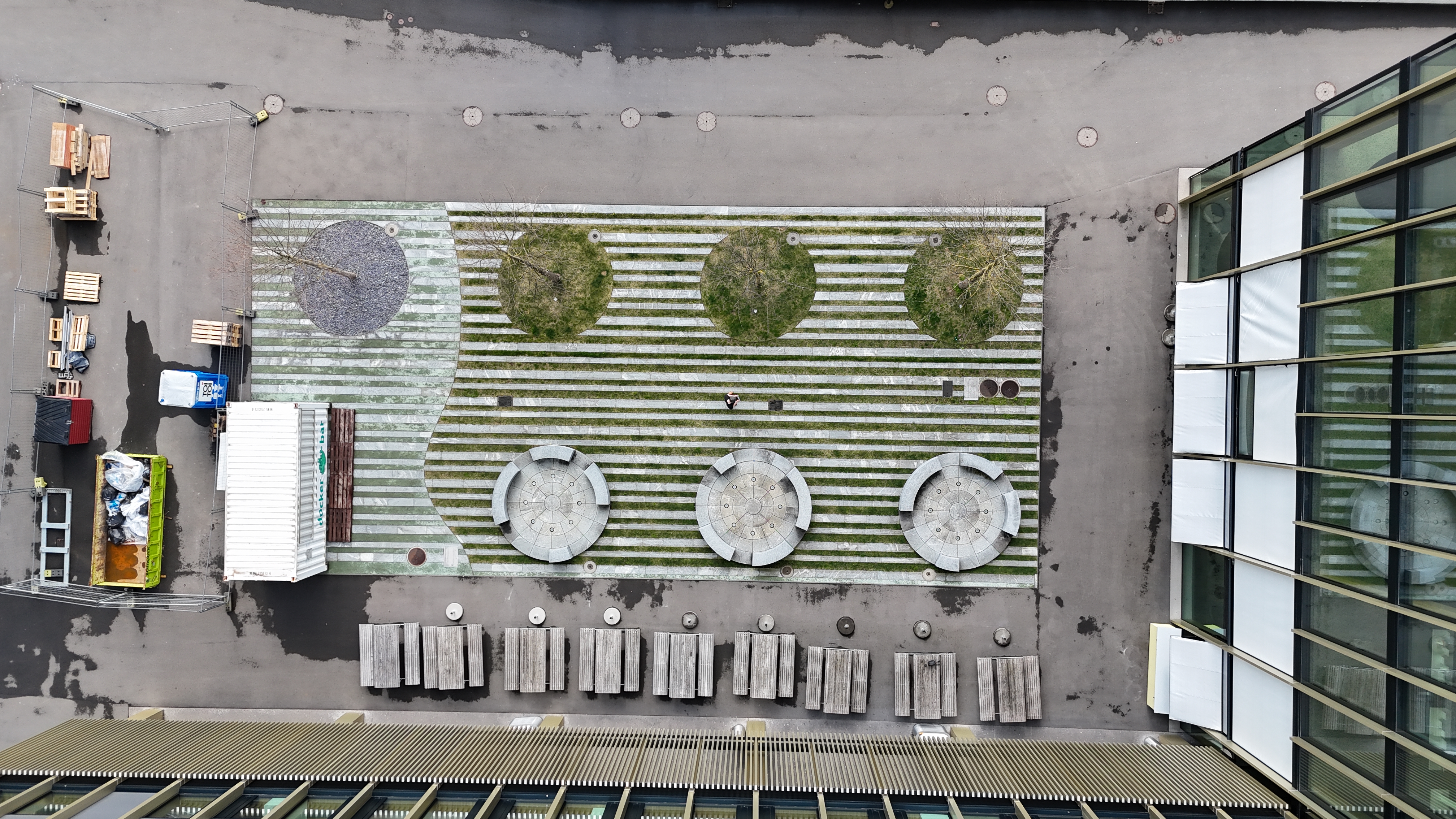

I was involved in designing the full data acquisition and processing setup, including selecting suitable drones and organizing a battery rotation and charging workflow to support extended recording sessions. I obtained the required drone license and defined a flight altitude and camera configuration that ensured individuals remained non-identifiable, even when directly below the drone. I also flew all four recording days, assisted by different team members, while maintaining consistent recording conditions across sessions.

After recording, videos were transferred and preprocessed. Some clips required trimming due to automatic drone return. Frames were extracted and labeled jointly with Teresa Windlin, who then trained a custom YOLO detector.

For large-scale inference, the pipeline was optimized for throughput. Around 8 hours of 4K@30 fps video were processed in parallel across multiple workstations. Video decoding was identified as the primary bottleneck and therefore performed directly on the GPU using torchcodec. High-resolution frames were evaluated using overlapping 640×640 patches, and inference was run via the native PyTorch model to avoid batch-size limitations of higher-level wrappers.

Detections were then linked over time using ByteTrack. From the resulting trajectories, speed and direction were estimated. Pedestrians were classified as stationary if they remained within a fixed radius for a minimum duration, allowing individuals to switch between stationary and moving states over time.

Finally, all stabilized tracks were aggregated into spatial heatmaps, aligned across recordings and waves to enable direct comparison.

Special Challenges

Several constraints significantly shaped the project. The scale of data, consisting of many hours of high-resolution video, required careful parallelization and efficient implementations. Drone stability was affected by wind, moving the captured area within a short time frame. Strong visual variability between sunny and overcast conditions introduced appearance shifts between waves. Tracking robustness was limited by frequent occlusions, leading to fragmented trajectories and unstable derived metrics. In addition, partial observability under trees and sunshades restricted analysis in some areas, and the limited number of recording days prevented strong conclusions for bikes and cars.

Results

The project delivered several concrete outputs for the city, including heatmaps of overall pedestrian traffic, as well as separate visualizations for moving and stationary pedestrians. Results were provided per day and per wave, enabling direct comparisons across conditions. Additional heatmaps were generated for bikes and cars, including parked positions, alongside aggregate statistics such as average pedestrian counts and bench usage. Together, these outputs enabled both qualitative and quantitative comparisons between the existing square layout and the proposed future design, supporting evidence-based urban planning decisions.

Outlook

The project demonstrates that privacy-preserving aerial sensing combined with modern computer vision can provide valuable insights for city planning. Future work could focus on improving long-term tracking robustness, increasing the number of recording days, and extending the analysis to additional traffic participants. With more data, derived metrics such as dwell time and flow consistency could become statistically more reliable and actionable.
